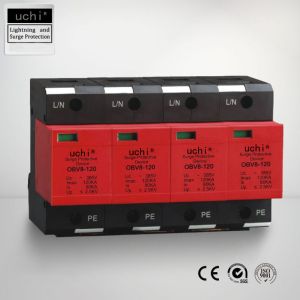

CE / FCC / ROHS Built-In Thermal Protection Charging Pile Surge Protection Device
Scope of application:
This product is a special lightning and surge protector for the AC side of the AC charging pile. It is installed at the AC input end of the charging pile to prevent surges from entering the charging pile through the power cord and causing damage.
Performance characteristics:
Adopt the latest thermal separation technology, built-in thermal protection, automatic separation device for short-circuit failure, completely avoid fire;
The core components adopt internationally well-known brands, with excellent performance, stable and reliable work;
The main parameters:
Maximum continuous working voltage Un: 385VDC
Nominal discharge current In(8/20μs): 20kA
Maximum discharge current Imax (8/20μs): 40kA
Combination method: 1+NPE
Response time: 25ns
Working environment: -40℃～＋85℃
Installation method: rail installation
Selection of surge protector
The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Need to be customized, please click send more requirements!
